Jung

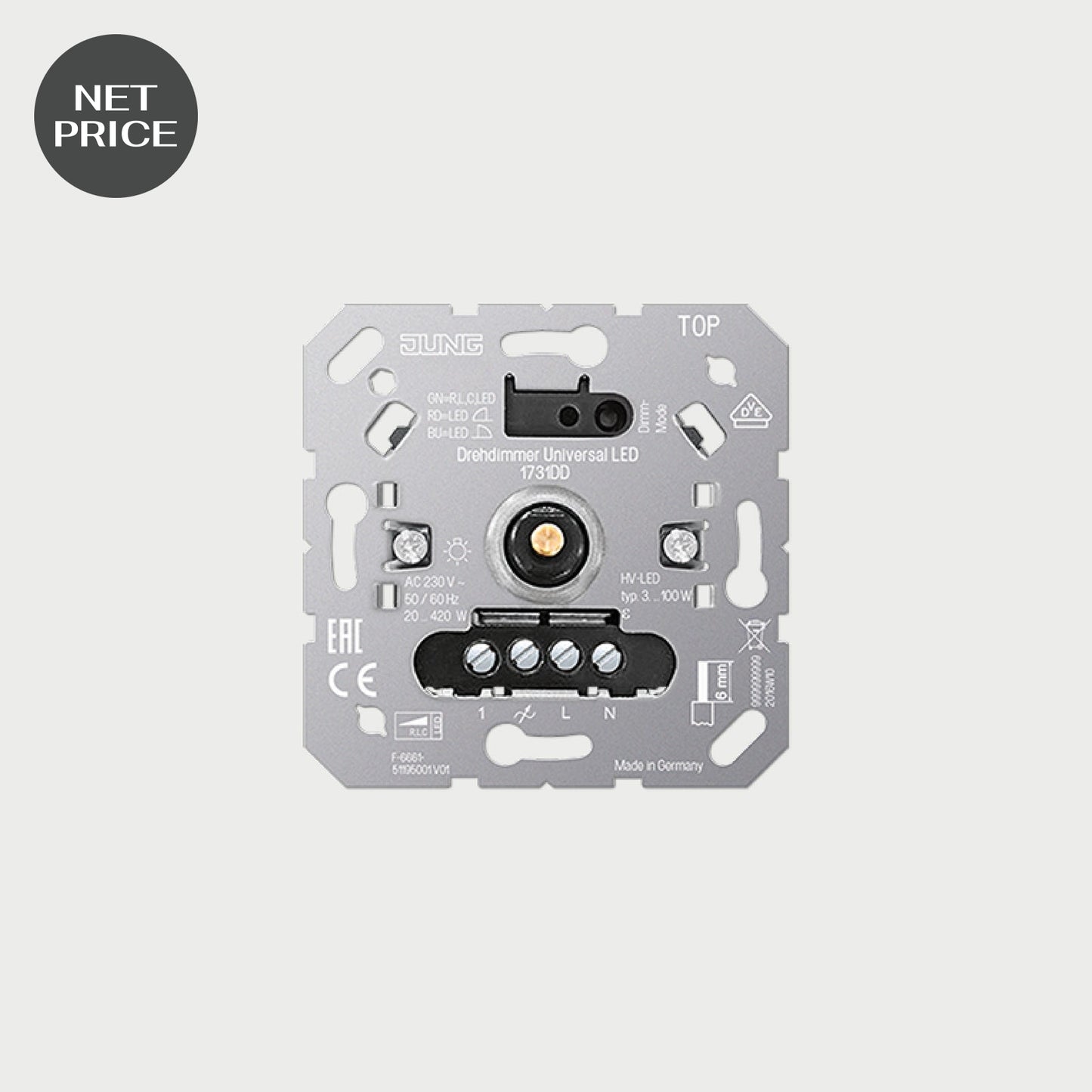

Universal rotary dimmer LED

Universal rotary dimmer LED

SKU:

Regular price 6,140.00 ฿ THB
Regular price Sale price 6,140.00 ฿ THB
Sale Sold out

Rotary dimmer universal LED
incremental control without end position
with satellite input

Intended use

  • Switching and dimming of lighting
  • Operation with suitable cover
  • Installation in flush box with dimensions according to DIN 49073

Product characteristics

  • Device works according to the leading edge phase control or trailing edge phase control principle
  • Automatic or manual setting of the dimming principle suitable for the load
  • Display of the set operating mode by means of LED
  • Device can be operated without neutral conductor
  • Switch-on via bulb-preserving soft start
  • Switch-on with last brightness or saved switch-on brightness
  • Switch-on brightness can be saved permanently
  • Minimum brightness can be saved permanently
  • Connection of satellite units possible
  • Electronic short-circuit protection with permanent switch-off after 7 seconds at the latest
  • Electronic over - temperature protection
  • Key card function
  • Power extension possible by means of power boosters (ref.-no. ULZ 1755 REG)
  • Optional accessory: compensation module LED, ref.-no.: KM LED 230 U

Product sheet

Technical data

• Rated voltage: AC 230 V ~
• Mains frequency: 50/60 Hz
• Stand-by power: approx. 0.35 W
• Power loss: approx. 4 W
• Ambient temperature: −5 ... +45 °C
Connected load at 25 °C
• Incandescent lamps: 20 ... 420 W
• HV halogen lamps: 20 ... 420 W
• Electronic transformers: 20 ... 420 W
• Electronic transformers with LV LED: typical 20 ... 100 W
• Inductive transformers: 20 ... 420 VA
• Inductive transformers with LV LED: typical 20 ... 100 VA
• Dimmable HV LED lamps: typical 3 ... 100 W
• Dimmable compact fluorescent lamps: typical 3 ... 100 W
• Operating mode LED trailing edge phase control: Rated power for HV LED lamps, typ. 3 ... 400 W, electronic transformers with LV LED typ. 20 ... 200 W.
• Ohmic-capacitive: 20 ... 420 W
• Capacitive-inductive: not permitted
• Ohmic-inductive: 20 ... 420 VA
• Ohmic and HV LED: typical 3 ... 100 W
• Ohmic and CFL: typical 3 ... 100 W
• Amplifiers: see instructions for amplifier
• Connection screw terminals
• single wire: 1 x 0.5 ... 4.0 mm² 2 x 0.5 ... 2.5 mm²
• stranded without ferrule: 1 x 0.5 ... 4.0 mm²2 x 0.5 ... 2.5 mm²
• stranded with ferrule: 1 x 0.5 ... 4.0 mm²2 x 0.5 ... 1.5 mm²
• Number of satellite units
Rotary satellite insert 3-wire 1733 DNE: 10
Satellite insert 3-wire 1723 NE: 10
Satellite insert 2-wire 1720 NE: unlimited
Push-buttons: unlimited
• Total length of extension unit cable: max. 100 m
• Total length power cable: max. 100 m
