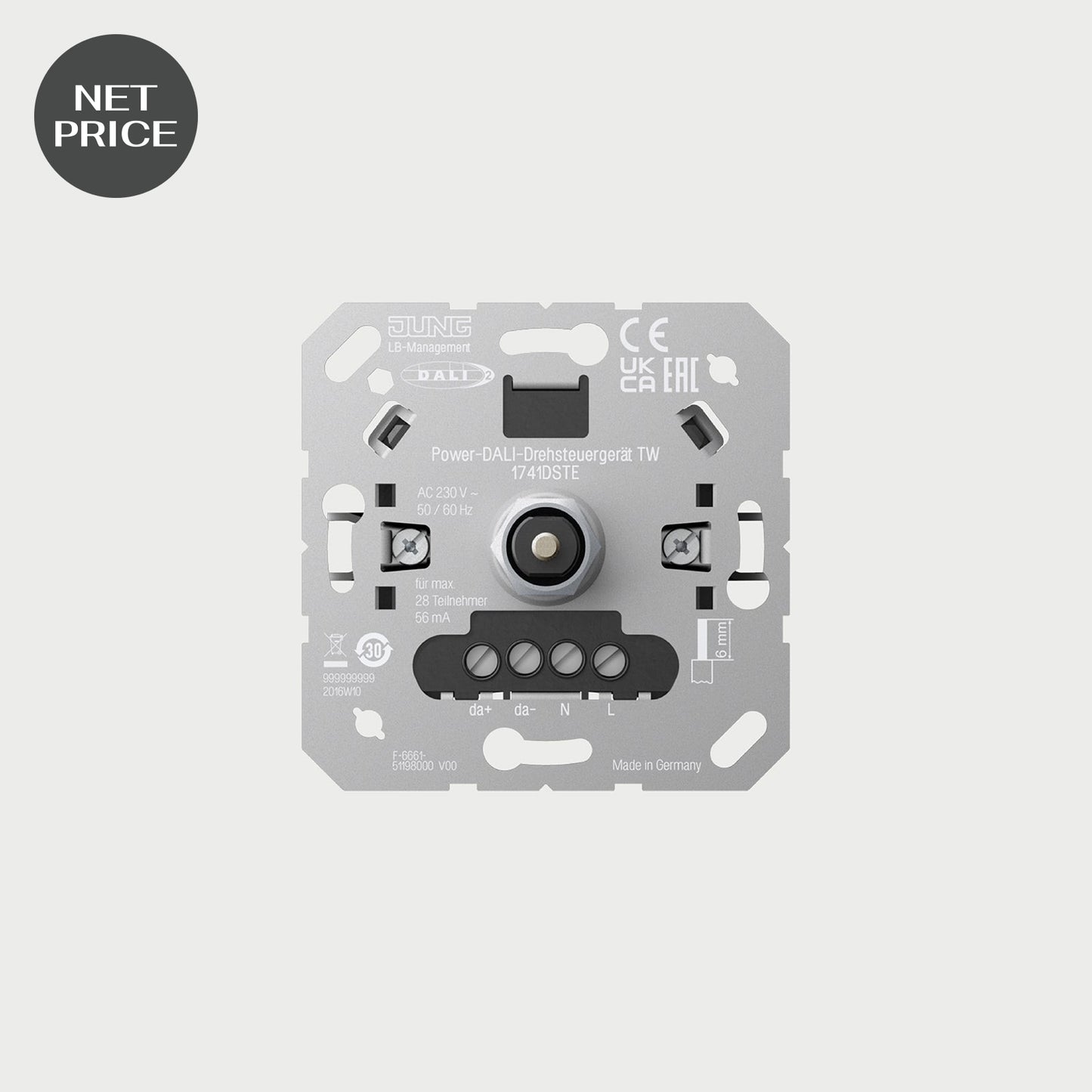

Power DALI rotary controller TW

Power DALI rotary controller TW

SKU:

9,950.00 ฿ THB
9,950.00 ฿ THB
Sale Sold out

Intended use

  • Brightness setting for luminaires with DALI/DALI-2 interface
  • Setting of colour temperature for luminaires with DALI Device Type 8 for tunable white acc. to IEC 62386-209
  • Installation in flush box with dimensions according to DIN 49073

Product characteristics

  • The Power DALI rotary controller TW supplies the control current for up to 28 DALI devices.
  • Saving of colour temperature limiting values
  • Saving of basic brightness and switch-on brightness
  • Certified acc. to IEC 62386-101 and -103 (Single Master)
  • The device functions as a DALI-2 single master and should not be combined with other DALI controllers.

Product sheet
Operating instructions

Technical data

• Rated voltage: AC 230 V ~
• Mains frequency: 50/60 Hz
• Power consumption: max. 2 W
• Ambient temperature: −5 ... +45 °C
• Rated voltage DALI: DC 16 V (typ.)
• Permitted bus current: max. 250 mA
• Guaranteed bus current: 56 mA
• Short-circuit current: max. 61 mA
• Colour temperature setting: 2,000 ... 10,000 K
• Output current: max. 56 mA
• Number of DALI devices: max. 28
