Jung

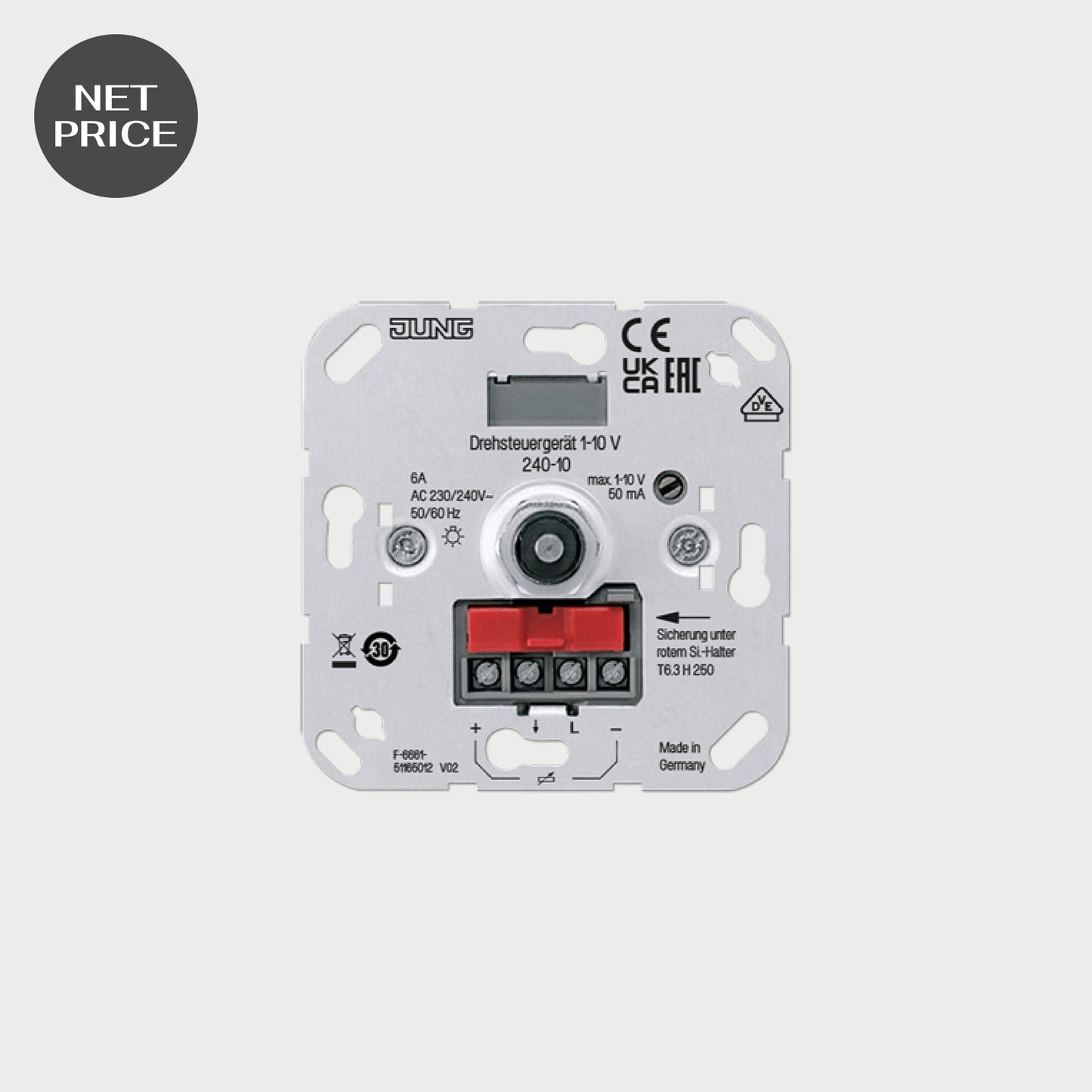

Rotary controller 1-10 V

Rotary controller 1-10 V

SKU:

Regular price 2,760.00 ฿ THB
Regular price Sale price 2,760.00 ฿ THB
Sale Sold out

Intended use

  • Switching and brightness setting for lamps with operating devices with 1-10 V interface
  • Installation in flush box with dimensions according to DIN 49073

Product characteristics

  • Basic brightness can be set
  • Short-circuit protection of switching contact with integrated fuse

Product sheet
Operating instructions V01
Operating instructions V02

Technical data

• Rated voltage: AC 230/240 V ~
• Mains frequency: 50/60 Hz
• Ambient temperature: +5 ... +25 °C
• Switching current at AC 230 / 240 V ~
• Ohmic: 6 A
• Control voltage: 0.7 ... 12 V
• Control current: max. 50 mA
• Connection screw terminals
• single wire: max. 4 mm²
• Fuse, type: T 6,3 H 250 V
