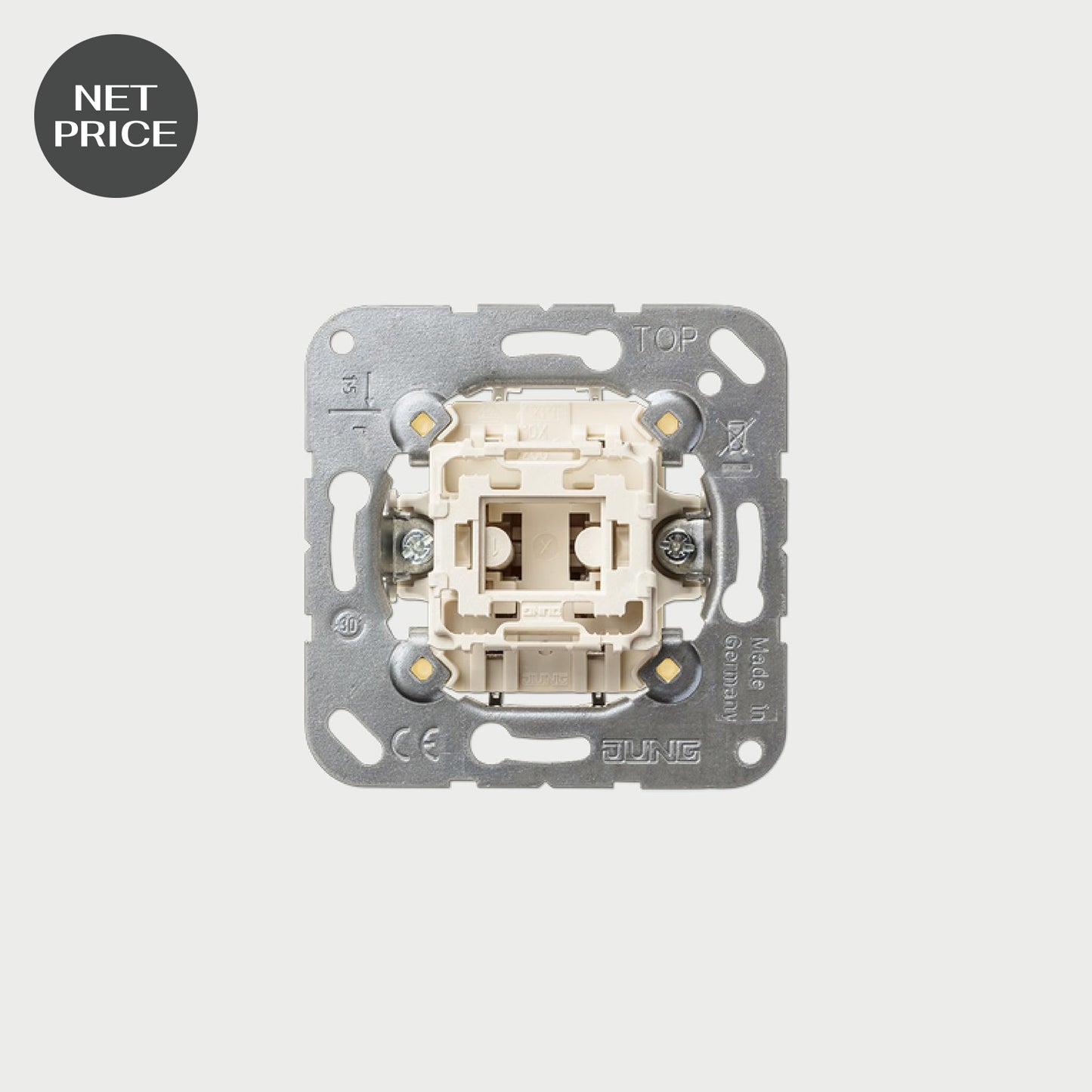

1-gang switch (insert), intermediate
1-gang switch (insert), intermediate
SKU:
1-gang switch 10 AX / 250 V ~ (insert)
with screwless terminals for rigid wires up to 2.5 mm2
without claws: ref.-no. with additional "E", e.g.: 506 EU
Switch can be illuminated in OFF-position with lamp ref.-no. 90/95 (230 V), 96-.. (low voltage), or LED lamp ref.-no. 90-LED.. (230 V) or 961248 LED.. (low voltage).
Power SBL (self-ballasted lamps): max. 100 W
Technical data
Technical data
-
