Davide Groppi

OHM

OHM

SKU:

Regular price 132,500.00 ฿ THB
Regular price Sale price 132,500.00 ฿ THB
Sale Sold out
Color

design by Davide Groppi, 2019

Ohm has been selected by the ADI Permanent Design Observatory to be shown at the ADI Design Index 2020.

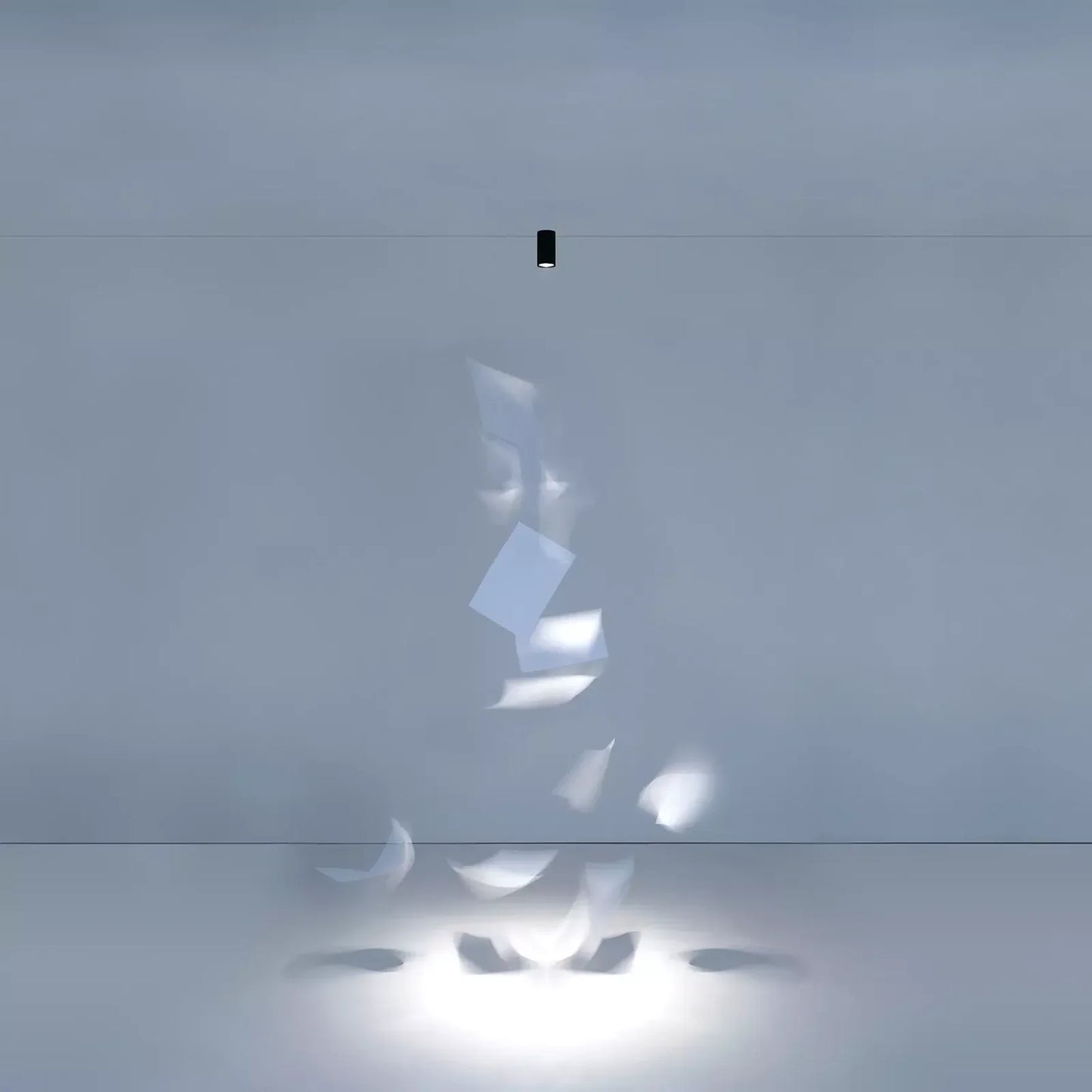

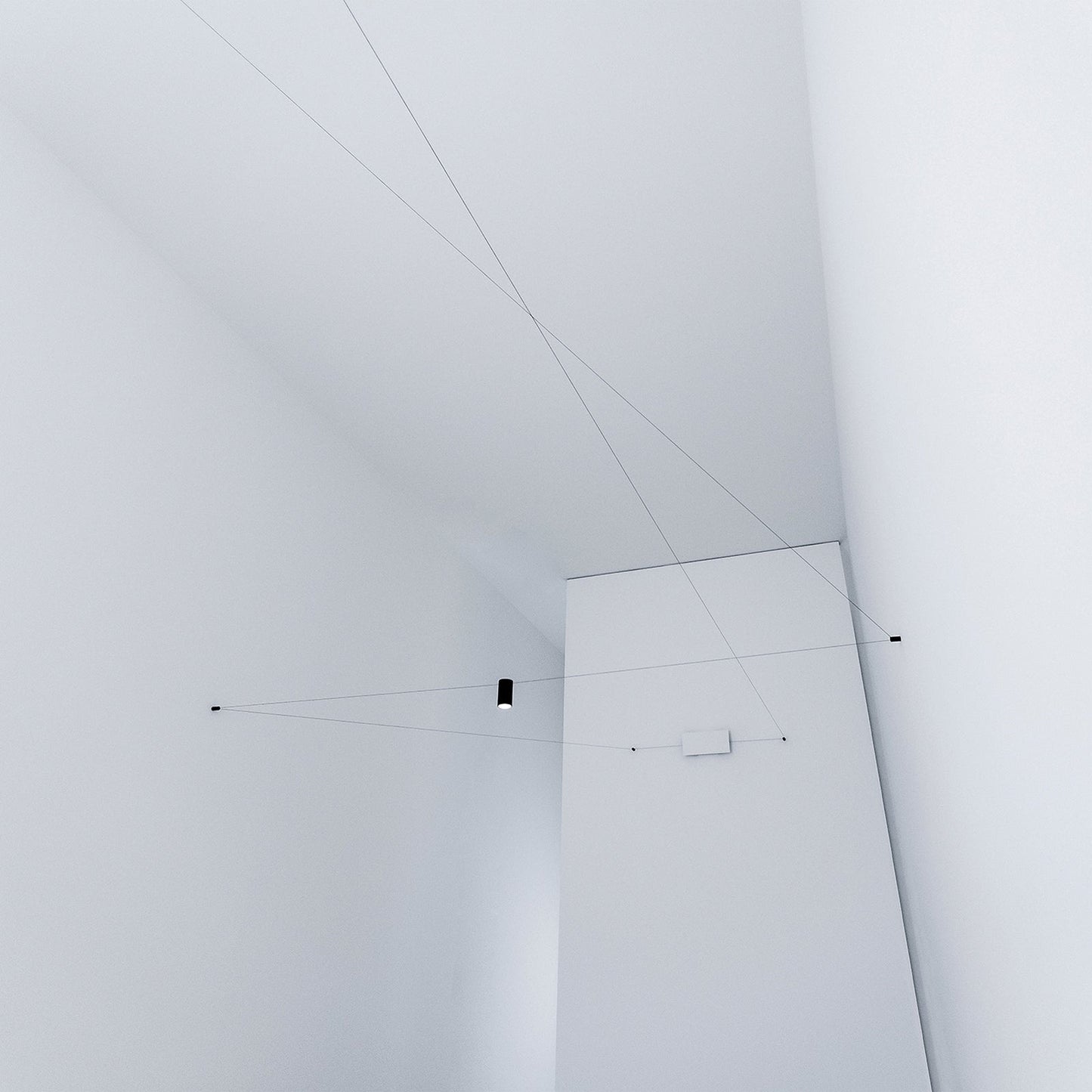

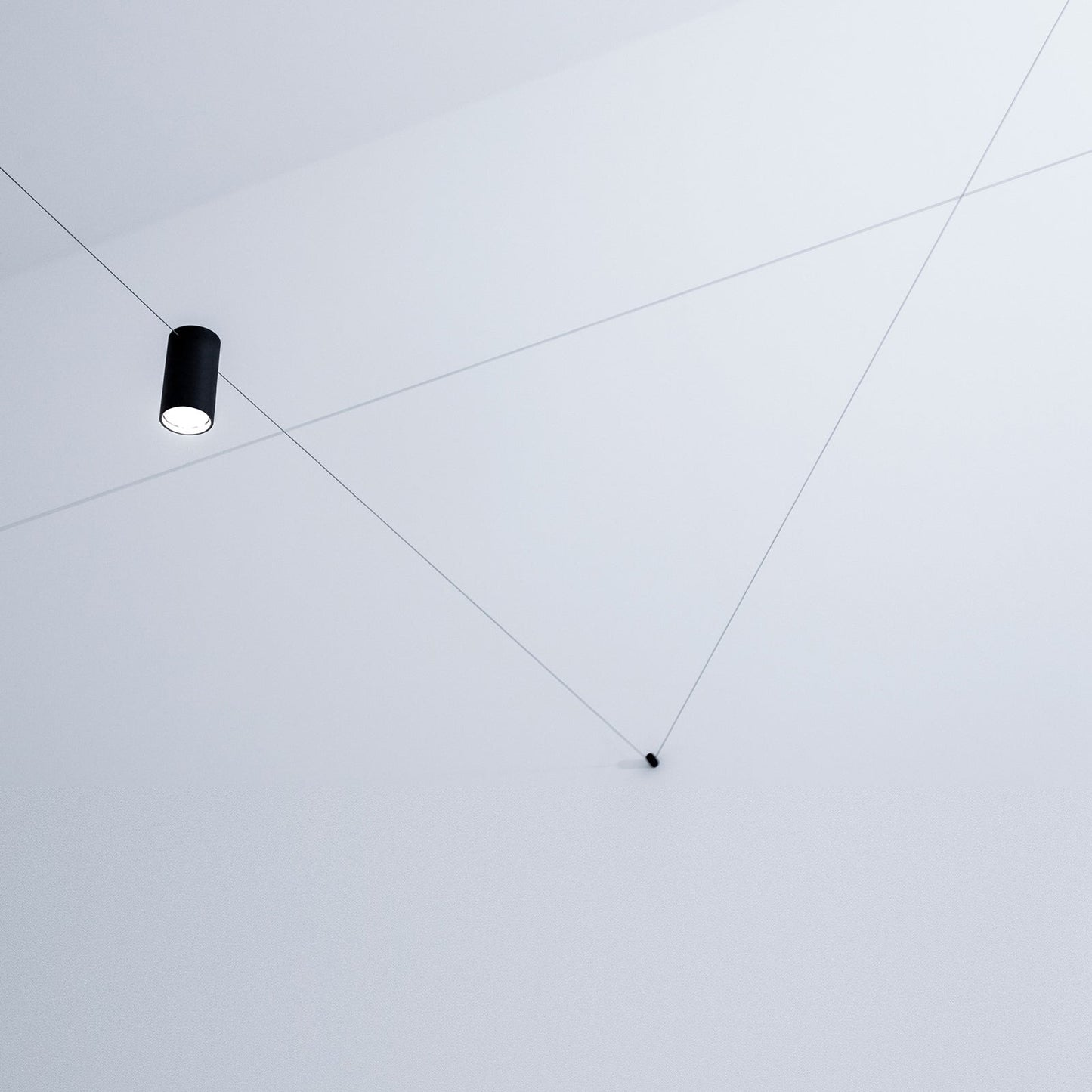

Light runs on a wire. An almost imperceptible wire, suspended in space.

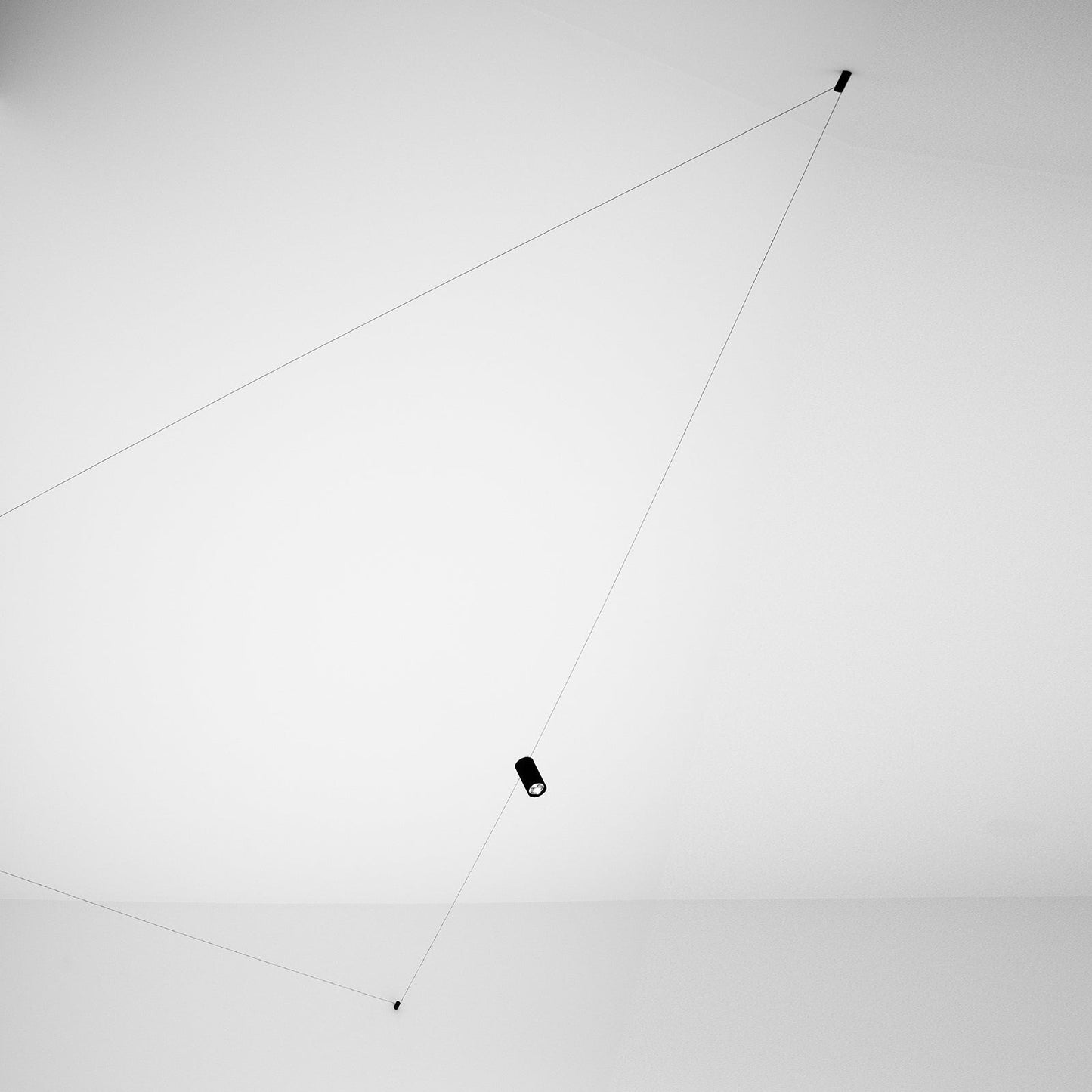

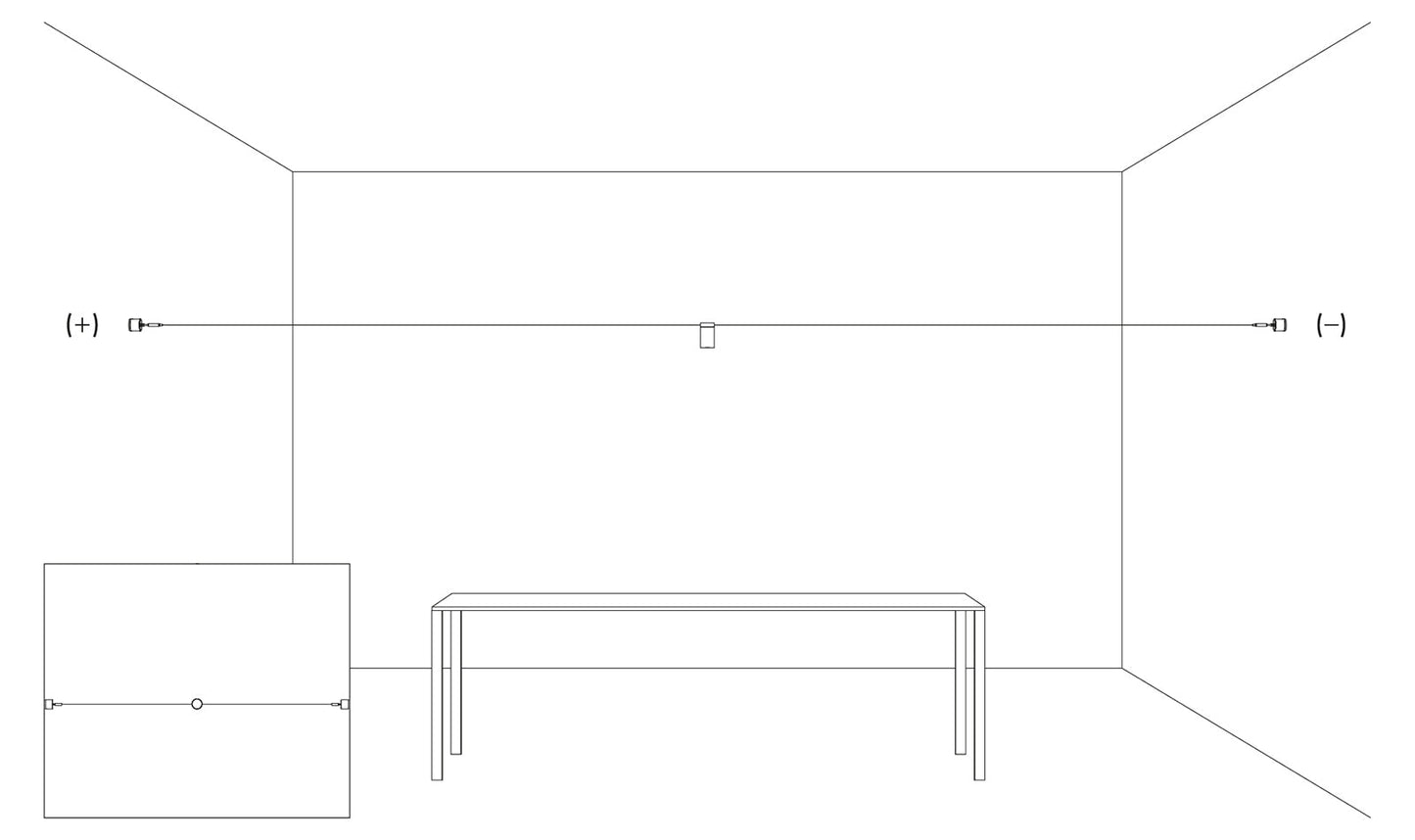

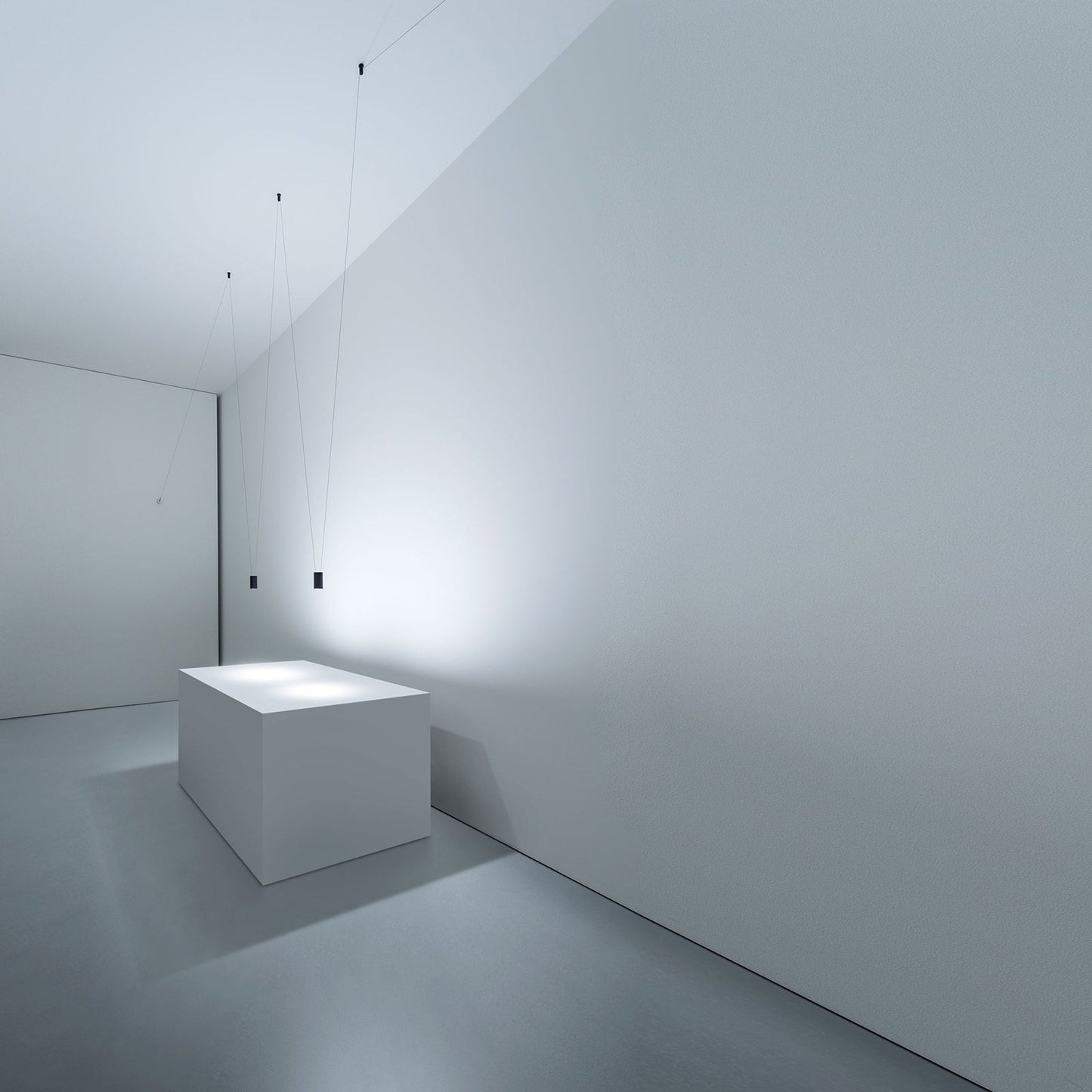

Like a tightrope walker on a thin rope, the light reaches everywhere, weightless and wonderful. Ohm is an electro mechanic project that takes maximum advantage of the characteristics of luminous diodes. Its secret is a special unipolar wire stretched from wall to wall. Where the light comes from is discreetly hidden, giving all the attention to what it is illuminating. New accessories allow the suspended installation.

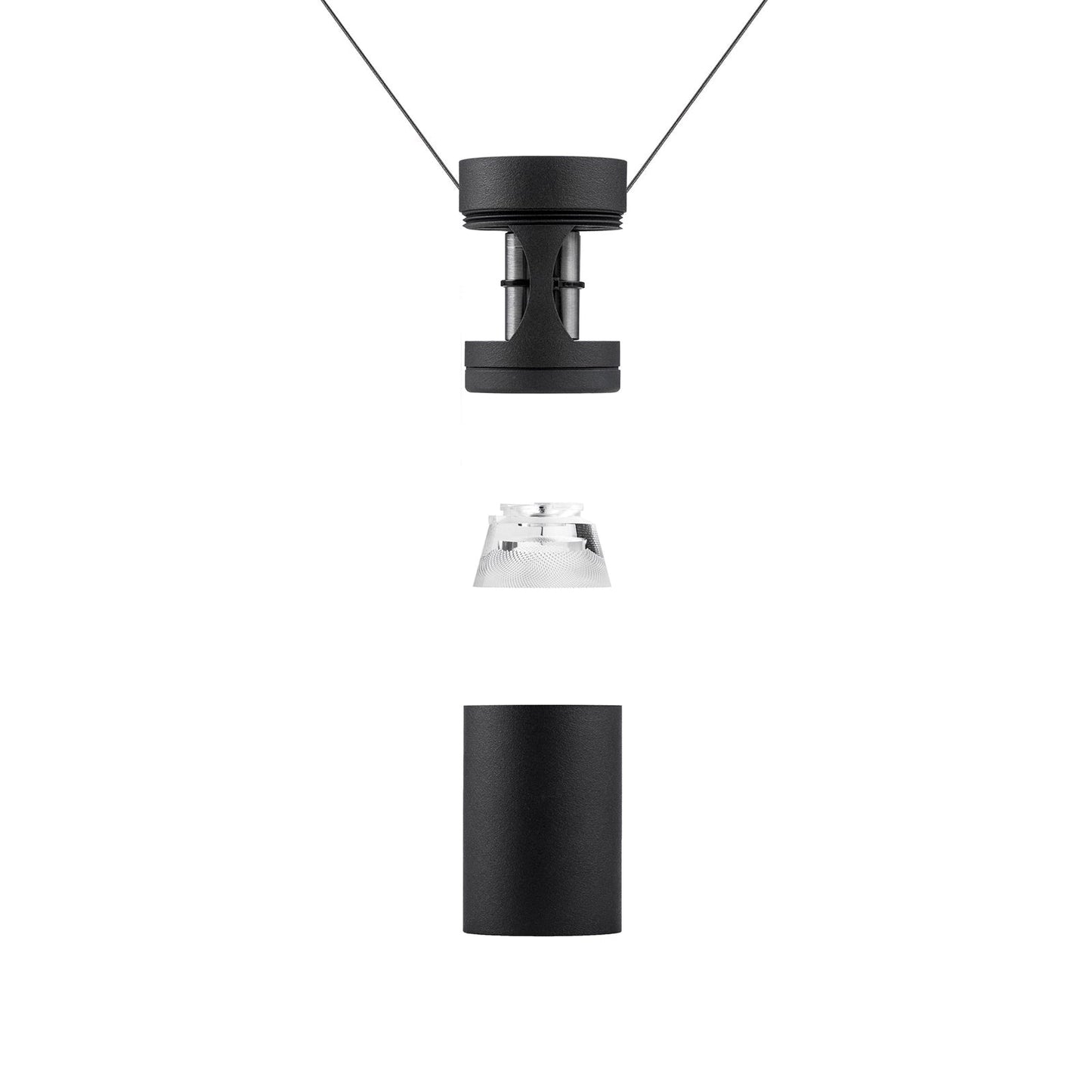

It is possible to replace the light source even with the luminaire assembled.
It can be powered with our Endless system.

Product sheet
Assembly instructions
IES

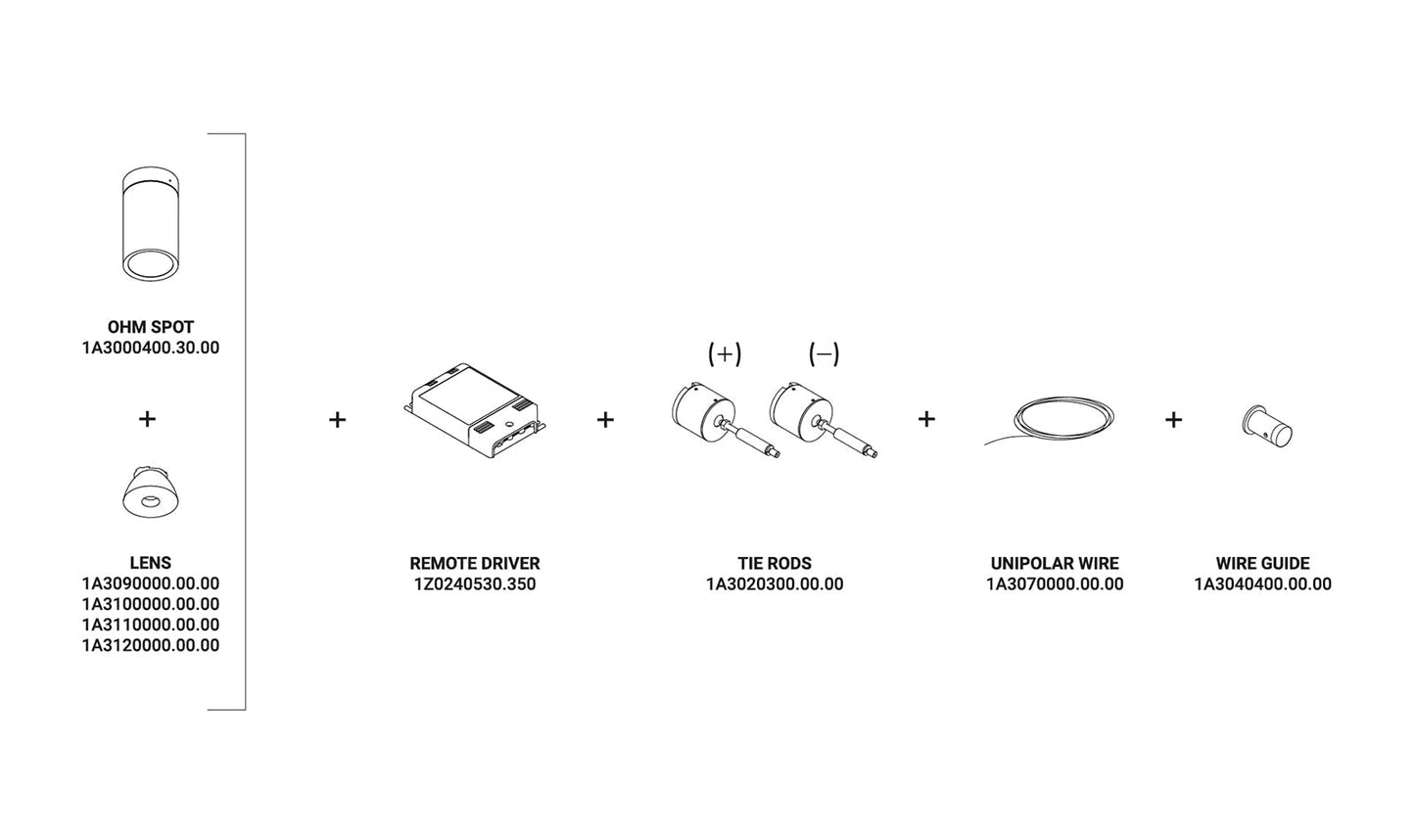

Materials

• Metal
• PA

Light Source

• OHM spot LED 3.6W 3000K Max 350 mA DC
• OHM spot lens
- Narrow beam 3000K / 288 lm / CRI 95
- Medium beam 3000K / 286 lm / CRI 95
- Wide beam 3000K / 273 lm / CRI 95
- Ultra wide beam 3000K / 270 lm / CRI 95
• OHM unipolar wire Max 60v DC Max 350 mA
• OHM remote driver
- Input (110-127V) 220-240V 50/60Hz
- Output 350 mA DC 18.5W / IP20
- Dimmerabile Dali / Push 1-10V
- Dali Push 1-10V dimmable

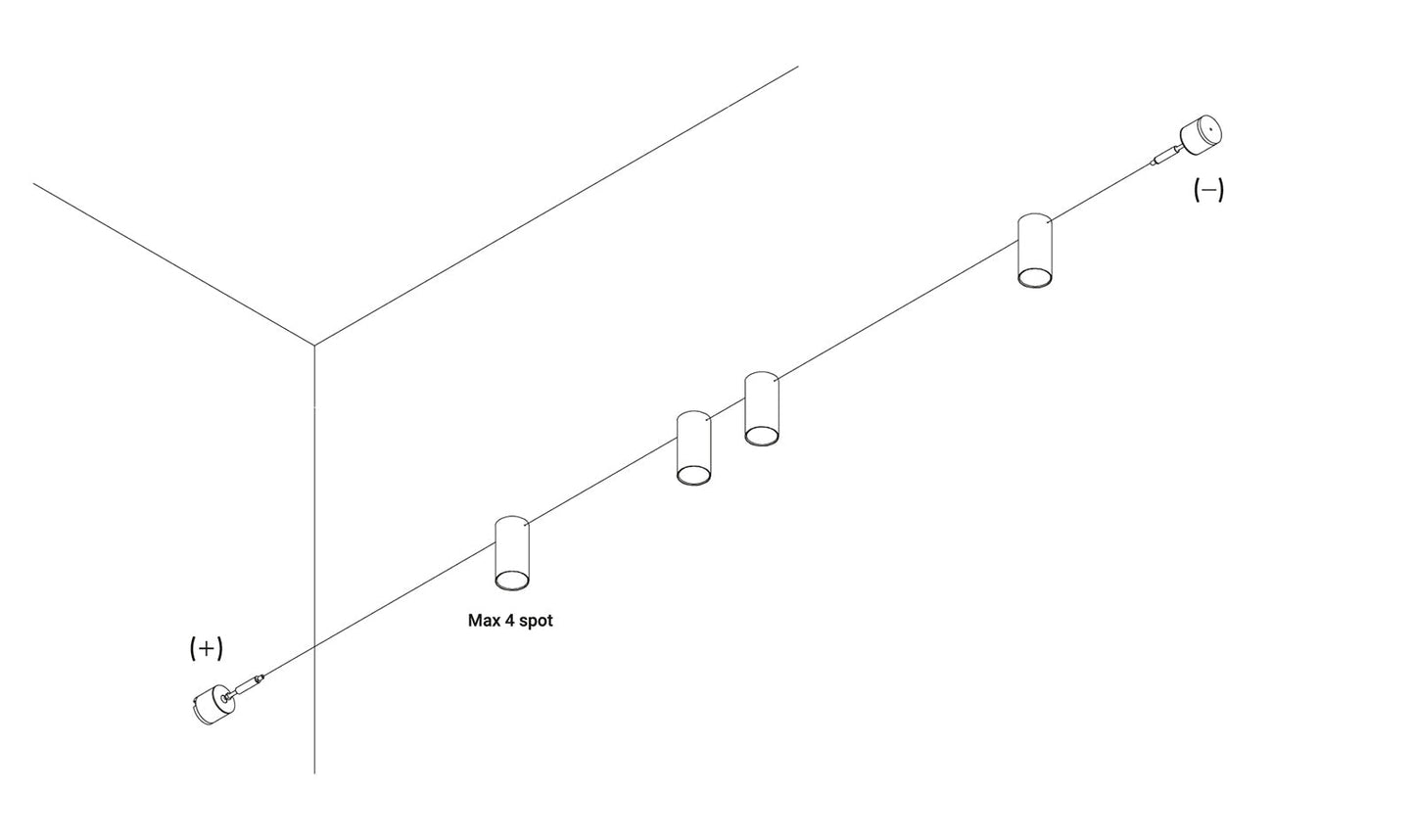

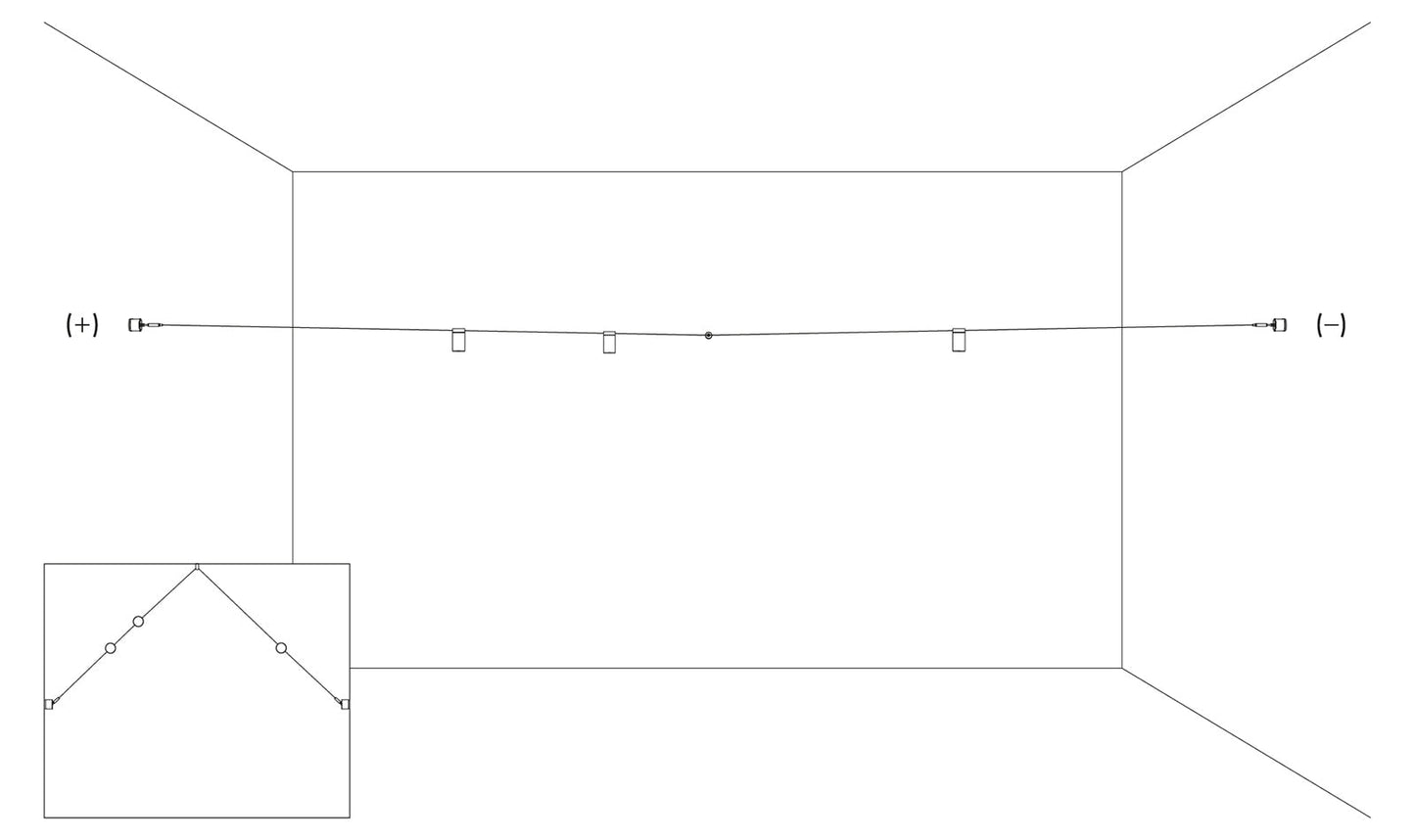

Remark : Max 4 spot on unipolar wire compulsory power supply kit

Dimensions

OHM spot dia:6 X h:11 cm
OHM spot lens dia:5 X h:3 cm
OHM unipolar wire w:2400 cm
OHM tie rods dia:5.2 X h:4.8 cm
OHM remote driver w:12.4 X l:7.9 X h:2.2 cm
