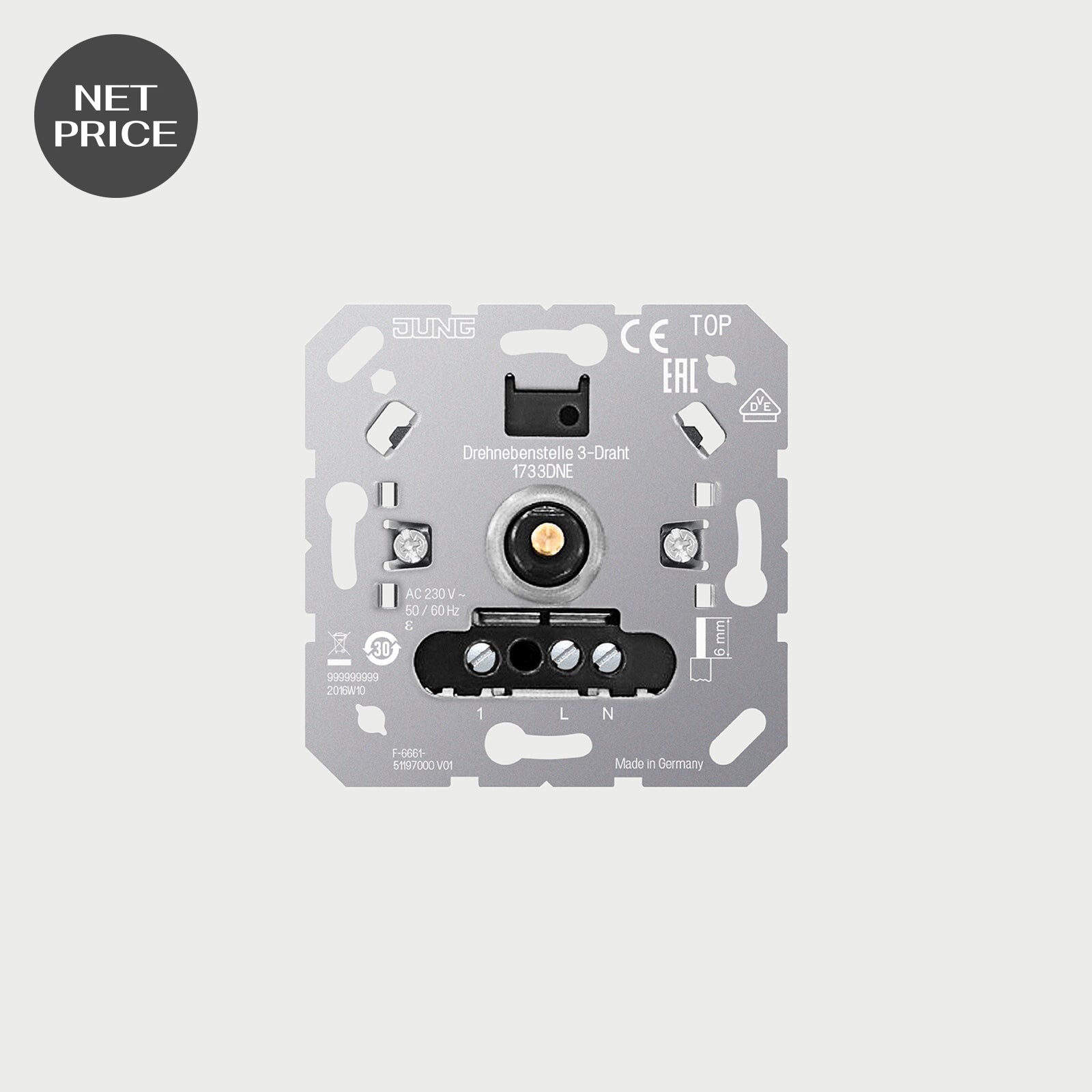

Rotary satellite insert 3-wire, with satellite input

Rotary satellite insert 3-wire, with satellite input

SKU:

4,130.00 ฿ THB
4,130.00 ฿ THB
Sale Sold out

Intended use

  • Satellite operation for dimmers ref.-no.: 1731 DD, 1711 DE, 1724 DM, UD 1755 REG
  • Operation with suitable cover
  • Installation in flush box with dimensions according to DIN 49073

Spare part
Fastening nut ref.-no.: MU 173 DD

Product sheet

Technical data

• Rated voltage: AC 230 V ~
• Mains frequency: 50/60 Hz
• Stand-by power: approx. 0.3 W
• Power loss: approx. 4 W
• Ambient temperature: −5 ... +45 °C
• Connection: Single wire
Screw terminals: 1 x 0.5 ... 4.0 mm² / 2 x 0.5 ... 2.5 mm²
• Connection: Stranded without ferrule
Screw terminals: 1 x 0.5 ... 4.0 mm² / 2 x 0.5 ... 2.5 mm²
• Connection: Stranded with ferrule
Screw terminals: 1 x 0.5 ... 4.0 mm² / 2 x 0.5 ... 1.5 mm²
• Total length of satellite cable: max.100 m
