Jung

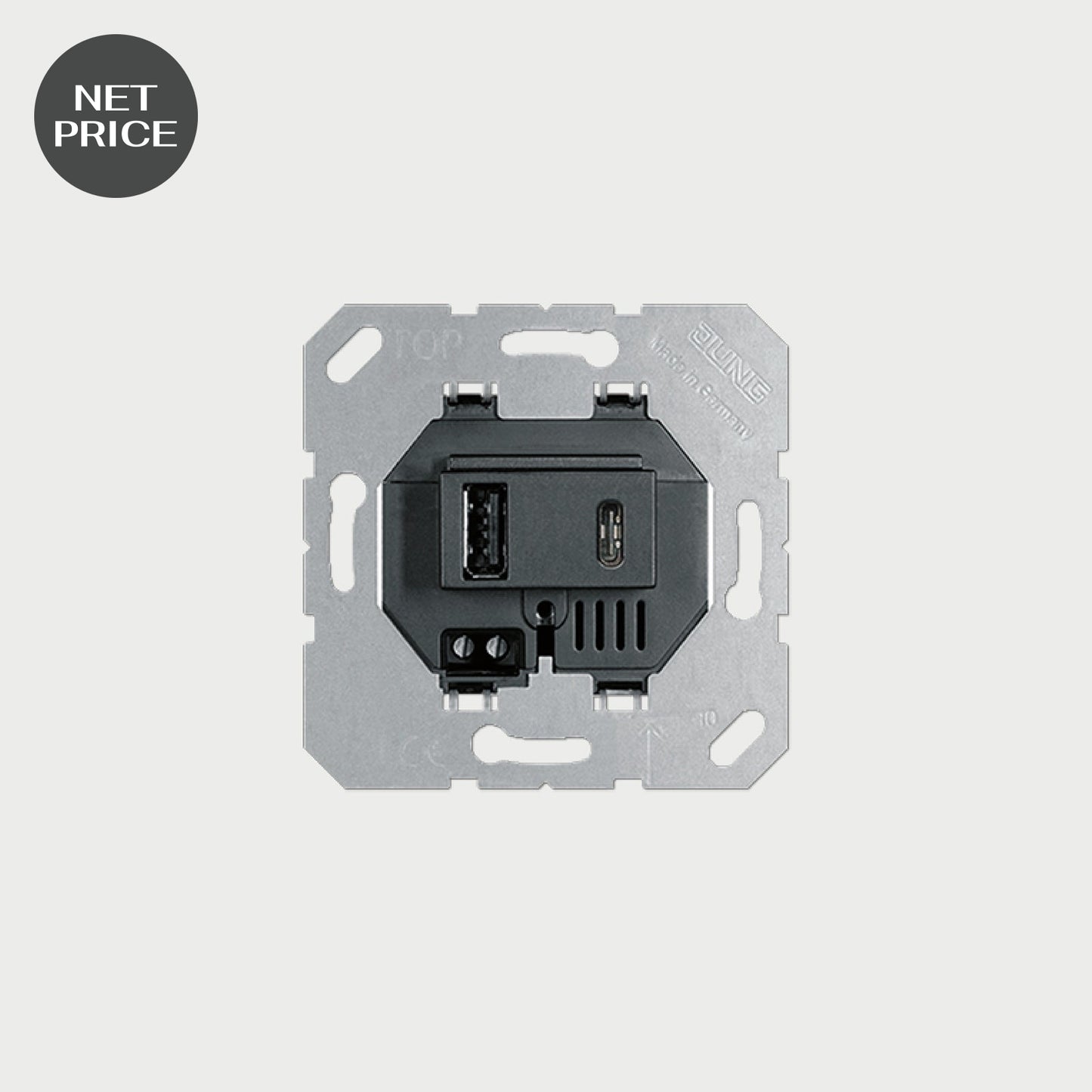

USB charger

USB charger

SKU:

3,490.00 ฿ THB
3,490.00 ฿ THB
Sale Sold out

with 1 USB port type A and 1 USB port type C
screw fixing only, without claws

Intended use

  • Battery charging station for mobile devices with USB connection
  • Installation in flush box with dimensions according to DIN 49073

Product characteristics

  • Simultaneous charging of 2 devices possible
  • Installation into multiple frame with other devices possible
  • Charging current: max. 3000 mA

Product sheet
Operating instructions

Technical data

• Input voltage: AC 100 ... 240 V ~ ± 10 %
• Mains frequency: 50/60 Hz
• Ambient temperature: 0 ... +35 °C
• Stora/transport temperature: −20 ... +70 °C
• Stand-by power consumption at UIN = 230
V ~: ≤ 0.1 W
• Connection mode: screw terminals
• Output voltage: DC 5 V (± 5 %)
• Output current
AC 120 ... 240 V ~ max. 3000 mA
AC 90 ... 108 V ~ max. 2500 mA
